Architecture

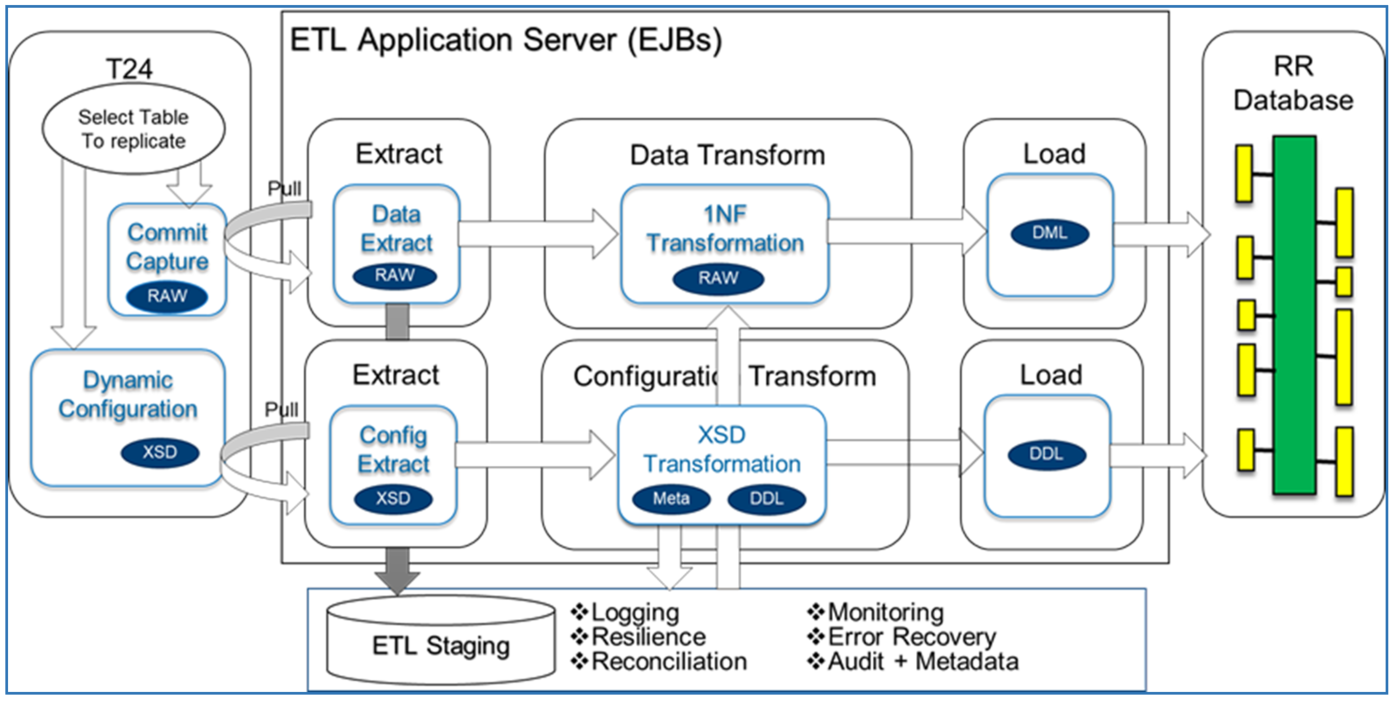

You will need to understand the architecture and process flow for Relational Replication.

1. The user must configure the Temenos Transact applications for Relational Replication.

2. On Commit XSD events are captured.

3. Extract EJB pulls the XSD event, parses the XSD event, and loads the metadata tables.

4. At the same time, XSD events are maintained in ETL staging tables and generate the DDLs to create the replicated tables.

5. Any transactions performed on the configured table for Relational replication will generate the data events during commit capture.

6. Extract pulls the data events via a JDBC call and transforms the data. It then generates the DML statements to load the data into the Relational replication database.

7. At the same time, the data events are logged into ETL staging tables for logging, resilience, reconciliation and monitoring purposes.
