Installing Traceability Microservice in AWS

This section helps you to install the Traceability Microservice in AWS.

Procedure:

1. Copy the generated zip file (from target folder) to the installation directory.
2. Extract the zip file.
3. In AWS command line, navigate to the installation directory and modify the region information in the install-aws.sh script specific to your installation.
   EXAMPLE:

   --region us-west-2

   --event-source-arn arn:aws:kinesis:us-west-2

   --uri arn:aws:apigateway:us-west-2:lambda:path/2015-03-31/functions/arn:aws:lambda:us-west-24.

4. Execute install-aws.sh.



Post Installation Verification

Once the install.sh is done, API_BASE_URL is available for testing the APIs. You can log in to AWS portal and verify whether the following have been created properly.

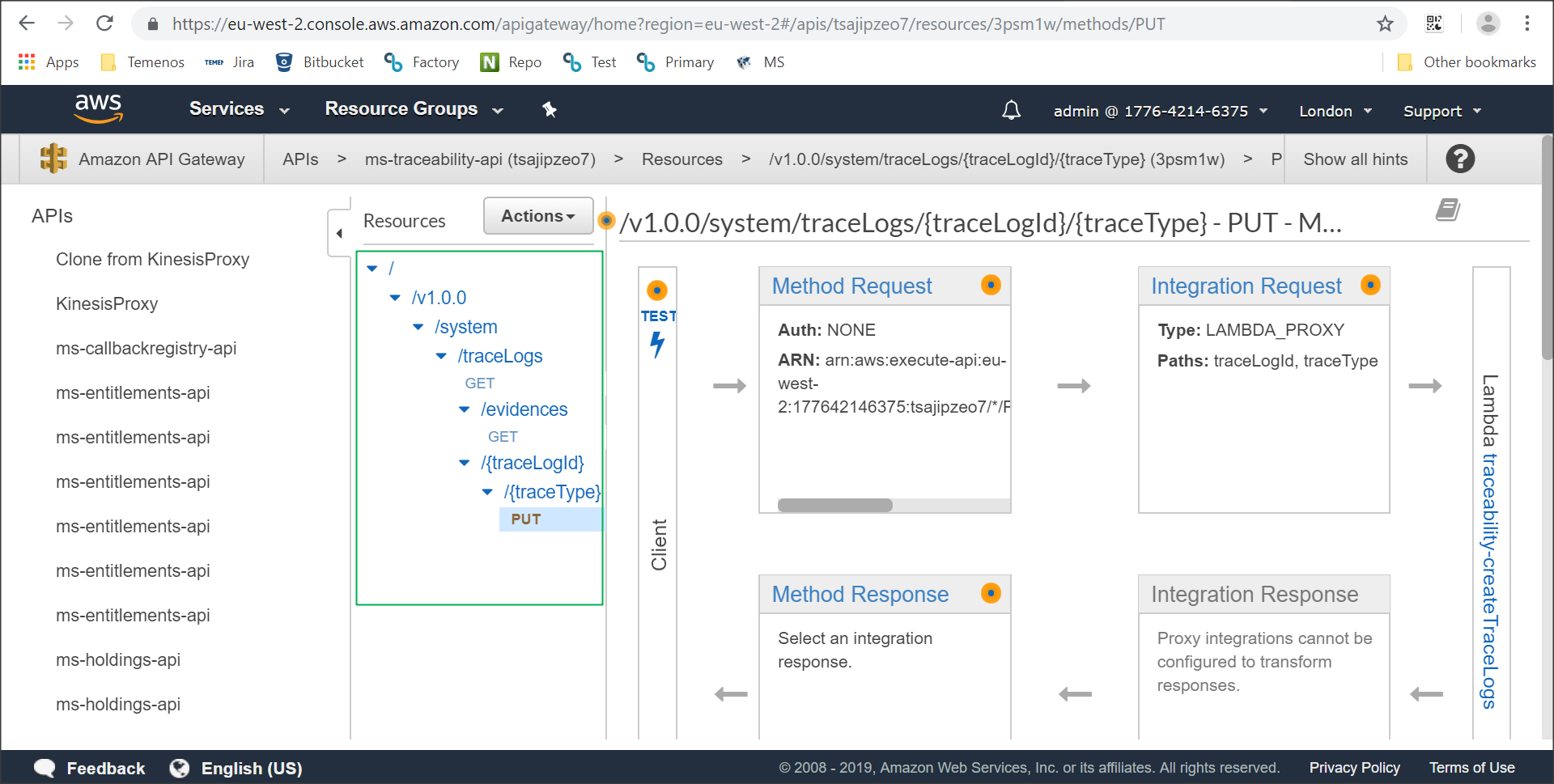

API Gateway

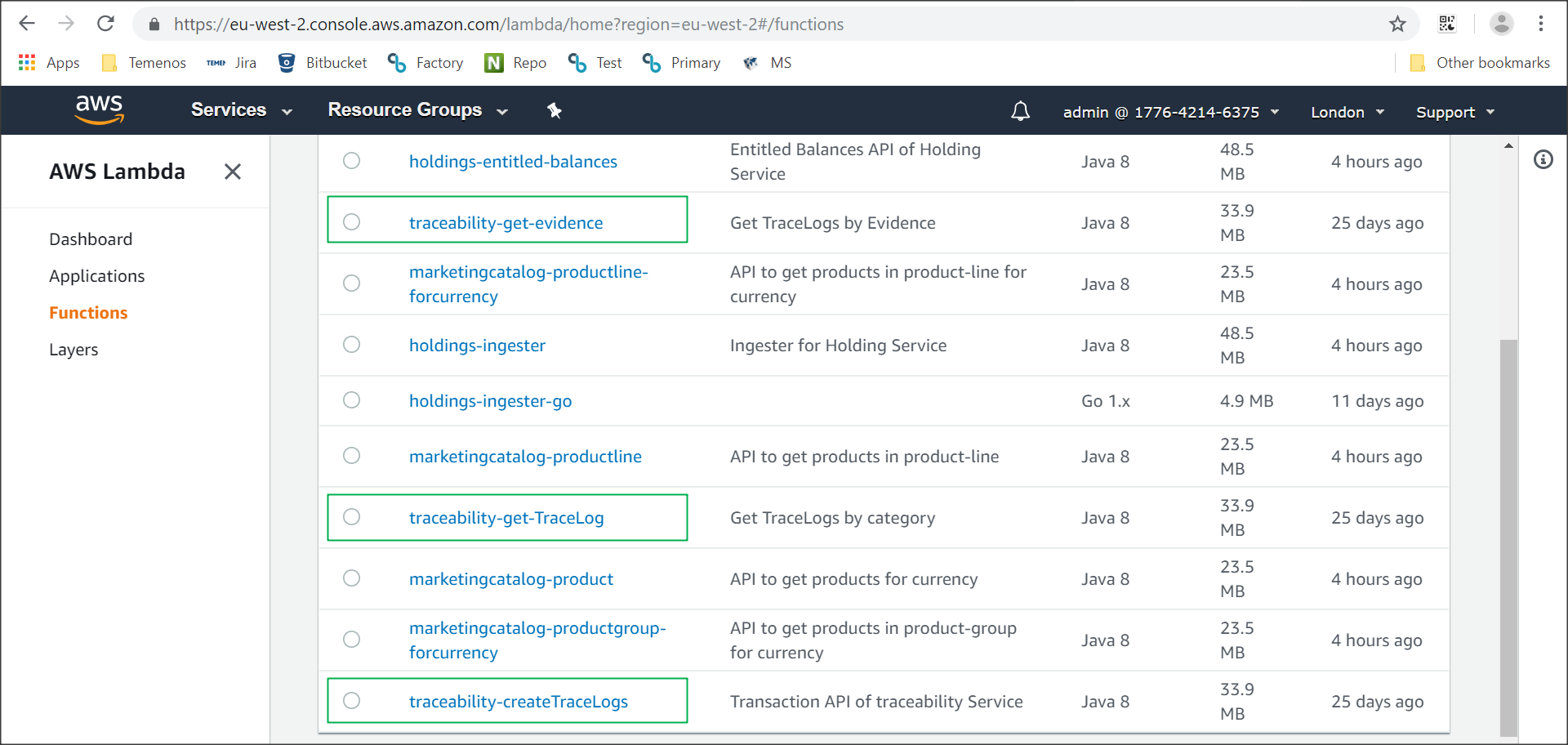

Lambda Function
